Ventilated Battens
Engineered for performance, our battens provide a smarter, safer and more efficient approach to roof ventilation and durability.
What are battens used for?
Battens have long been an essential component in residential and commercial building construction in Australia.
Primary Purpose
To provide a secure fixing point for roof and wall coverings.
How?
By creating regular, evenly spaced frameworks across these structures, battens help ensure that the covering material is well aligned, evenly supported and secure.
NCC 2025 Condensation Management
The National Construction Code 2025 updates (Part 10.8) strengthen the requirements for condensation control and thermal efficiency in roof assemblies and walls. These include:
- Minimum 20 mm clear air gap above insulation
- An airflow cavity that is a minimum of 25,000 mm² per linear metre
- Allows moisture vapour to escape
- Helps prevent condensation, mould, and structural damage
Important Notice
Traditional solid roll-formed galvanised steel battens do not meet the new NCC requirements, creating the need for a modern ventilated batten design that delivers compliant airflow performance.
Better Airflow, Better Performance
Optimised Ventilation & NCC 2025 Compliance
Our batten features a patented proprietary design that maximises airflow and ventilation, supporting compliance with NCC 2025 condensation management requirements.
Advanced Airflow Design

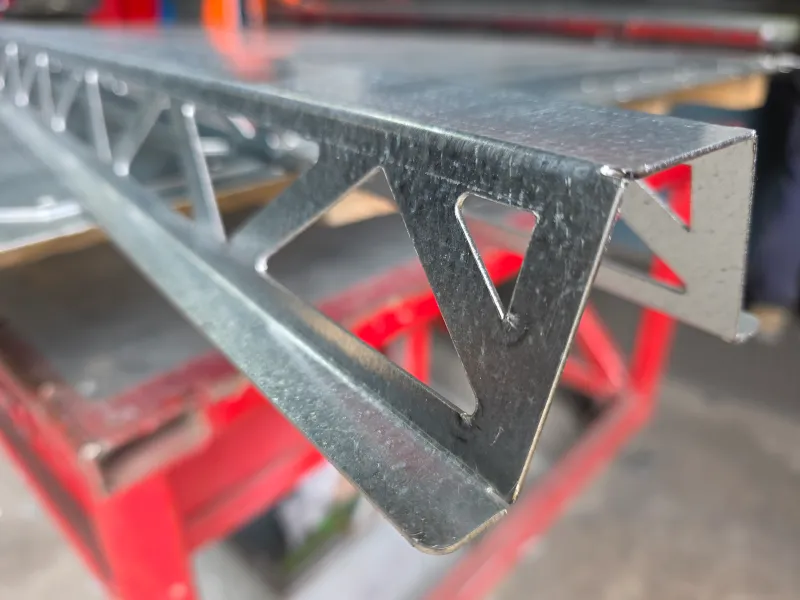

Triangular ventilation openings (34 mm × 75 mm) promote high airflow with minimal pressure loss, helping to reduce humidity and condensation, and lowering the risk of mould growth and timber degradation.
Enhanced Building Performance
Improved ventilation contributes to better energy efficiency, thermal and acoustic performance, while also strengthening overall roof system durability.
Superior Strength & Safety
An upgraded material gauge and triangulated design deliver excellent compressive strength, improved fall protection, superior wind load and tie-down performance, better fastener engagement, and compatibility with modern roof and wall spacing.
Frequently Asked Questions
Paton Industries
With over 55 years of experience, Paton Industries is a trusted name in Australian manufacturing. Known for our commitment to design excellence, durability and performance in livestock equipment, we are now extending this expertise into the construction industry.
55+
Years Experience
VIC
Australian Made
100%
Quality Assured
